Centre of Gravity, Metaphorically: Plotting time-based changes on maps

I haven’t written a blog in far too long. My bad. So, to get back into the swing of things, here’s something I’ve been playing with this week: centre of gravity plots.

It started with an accident. I had some EU member data, and I was simply trying to make a filled map based on the year each country joined, just to see if it was worth plotting. You know, something like this:

1 eu filled.png

Except that I’d been having a clumsy day (the kind of day where I spilled coffee on my desk, twice), and accidentally missed the filled map option and clicked line instead:

2 broken line.png

Now, I normally don’t like connected scatterplots, but realised that I could change a couple of things to this accident to make quite a nice connected scatterplot on a map, joining up the central latitude and longitude of each country, so I thought I’d follow through with it and see what happened.

(by the way, the colour palette I use is the Viridis Palette, which I absolutely love. You can find the text to copy/paste into your Tableau preferences file here)

Firstly, I changed my “year joined” field from a discrete dimension into a continuous measure so that I could make it a continuous line with AVG(Year joined):

3 connected line left right.png

This connects all the countries by their central latitude and longitude as generated by Tableau, but it joins them up in order from left to right on the map. So, I then added AVG(Year joined) to the path shelf as well, which means that each country is joined in chronological order, or in alphabetical order when there’s a tie (as with Belgium, France, Germany, Italy, Luxembourg, and the Netherlands, who formed the EU in 1958):

4 connected line year.png

I was pretty happy with this; it shows the EU’s expansion eastwards over time far, far better than the filled map did.

I got talking to Mark and Neil online, who introduced me to the idea of “centre of gravity” plots, which show the average latitude and longitude of something and how it changes with respect to something else (usually time). In this case, a centre of gravity plot of the EU would show the average central point of Belgium, France, Germany, Italy, Luxembourg, and the Netherlands in 1958, then the average central point of Belgium, France, Germany, Italy, Luxembourg, the Netherlands, Denmark, Ireland, and the UK in 1973… and so on. I figured it should be easy enough, I’d just take Country off detail, replace it with Year joined, and average the latitudes and longitudes together.

Sadly, it doesn’t work that way. The Latitude (generated) and Longitude (generated) fields that Tableau automatically generates when it detects a geographic field like country can’t be aggregated, and can’t be used if the geographic field they’re based on isn’t in the view. That meant I couldn’t average the latitudes and longitudes over multiple countries without creating lots of different groups.

But, there’s a simple way around this! You can create a text table of the latlongs, copy/paste them into Excel or whatever, then read that in as another data source. Firstly, drag your geographic field into the view, and put the latitude on text, like so:

5 create table.png

Then copy and paste it all (I just click on there randomly, hit ctrl+A, ctrl+C, switch to Excel, ctrl-V). Now do the same for the longitude. Save the document, and read it in as a separate data source in Tableau. Now you can blend the data on Country, or whatever your geographic field is, and you’ve got actual latlongs that you can use like proper measures.

And so I did. I recreated the line chart with the new fields, but took Country off detail, and made AVG(Latitude) and AVG(Longitude) into moving average table calculations which take the current value and an arbitrarily high number of previous values (I put in 100, just because). This looked pretty good:

6 cog flawed averages.png

…but then I realised that it wasn’t accurate data. Look at the point for 1973, after the UK, Ireland, and Denmark joined. Doesn’t that seem a little far north?

7 cog flawed illustrated

To investigate it fully, I duplicated the sheet as a crosstab, because sometimes, tables are the best way to go. What I found is that I’ve got a bit of Simpson’s Paradox going on; the calculation is taking averages of averages:

8 cog flawed explained.png

Not so great. If we add Country to the view after the Year joined pill, you can see what it should be:

9 what it should be doing.png

But the problem is, how do we put Country on detail but then get the moving average to ignore it? I tried various LODs, but couldn’t get it to work exactly – if you have a solution, I would love to hear it! My default approach is to try to restructure the data in Alteryx – because that generally solves everything – but I feel like I’m becoming too reliant on restructuring the data rather than working with what Tableau can do.

Anyway, I ended up restructuring the data by generating a row for each country and year that the country has been a member of the EU. That means I can create a data table like this:

10 restructured table

…which removes the need for a moving average calculation entirely, because the entire data is moving with the year instead. Just take country off detail / out of the view, and you get the right averages:

11 restructured table 2

Much more accurate:

12 EU cog.png

This is a better way of structuring the data for this particular instance, because the dataset is tiny; 28 countries, 60-ish years, 913 rows in my Excel file. It’s not going to be a good, sustainable solution for a centre of gravity plot over a much bigger dataset though. I did the same thing for the UN – 193 countries, 70-ish years – and ended up with 10,045 rows in my Excel file. It’s easy to see how this could explode with much more data.

It does look interesting, though; I’d never have guessed that the UN’s centre of gravity hadn’t really left the Sahara since its inception:

12 UN cog

Finally, since I was on a roll, I plotted the centre of gravity for the English football champions since the first ever professional season in 1888-89. Conceptually, this was slightly different; unlike the EU and the UN, the champion isn’t a group of teams constantly joining over the years (although it is possible to plot that too). Rather, I wanted to create a rolling average of the centre of gravity over the last N years. If you set it to five years, it’s a bit messy, moving around the country quite a lot:

13 english football 5 years.png

But if you set it to 20 years, the line tells a nice story. You can see how English football started out with the original northern teams being the most powerful, then it moves south after the Second World War, then it moves north-west during the Liverpool/Manchester era of domination, and finally it’s moving south again more recently:

14 english football 20 years.png

Many thanks to Ian, who showed me how to parameterise this. Firstly, put your hard-coded (i.e. not Tableau generated!) latitude or longitude field in the view, and create a moving average over the last ten years. Or two, or thirteen, or ninety-eight, it doesn’t really matter. Next, drag the moving average latitude/longitude pill from the rows/columns into the measures pane in order to store it. This creates a calculated field. Meanwhile, create a parameter to let you select a number. This will change the period to calculate the moving average over. Open up the new calculated fields, and replace the number ten/two/thirteen/ninety-eight with your newly-created parameter, remembering to leave the minus sign in front of it:

15 calc mov avg param

This will let you parameterise your moving average centre of gravity.

It was a lot of fun to play around with these maps this week. I’ve packaged them all up in a Tableau Public workbook here; I hope you find it as interesting as I did!

(title inspiration: Touché Amoré – Gravity, Metaphorically)

Standard
Alteryx, football, Tableau

The relationship between away team performance and distance travelled in the English football league

If you follow football, you often hear about arduous away trips to the other side of the country. This seems to imply that the further an away trip is, the more difficult it is for the away team.

However, is that actually true? Do away teams really do worse when they’ve travelled a long way to get there, or is there no difference?

The football league season has just finished, so I’ve taken each match result from the Championship, League One, and League Two in the 2016-17 season. After some searching, I got the coordinates of each football league team’s stadium, and used the spatial tools in Alteryx to calculate the distance between each stadium. I then joined that to a dataset of the match results, and you can download and play with that dataset here. I stuck that into Tableau, and you can explore the interactive version here.

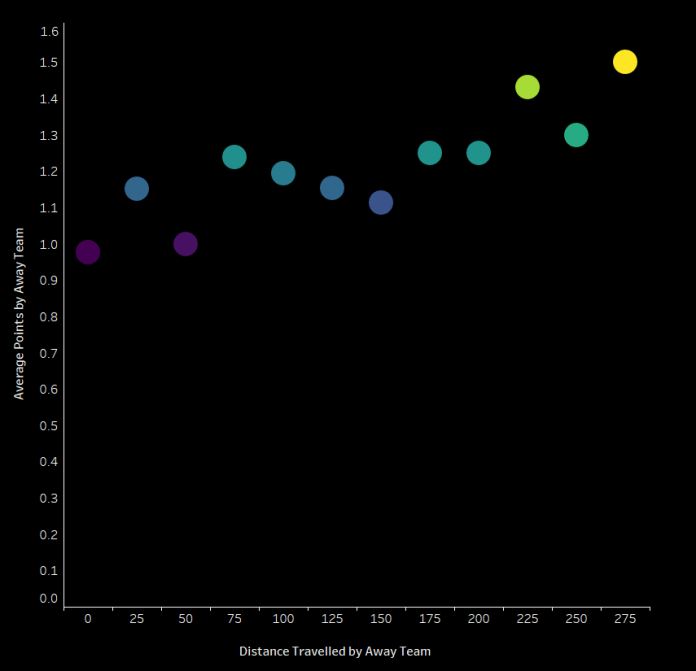

First, let’s have a look at how many points away teams win on average when travelling different distances. I’ve broken the distance travelled into bins of 25 miles as the crow flies from the away team’s stadium to the home team’s stadium, then found the average number of points an away team wins when travelling distances in that bin (I excluded the games where the away team travelled over 300 miles as there were only two match ups in that bin – Plymouth vs Hartlepool and Plymouth vs Carlisle).

It turns out that it actually seems easier for away teams when they travel further away:

Teams travelling under 25 miles win just under a point on average, while teams travelling over 200 miles win between 1.3 and 1.6 points on average.

This is surprising, but there could be several reasons contributing to this:

  1. Local rivalries. It’s possible that away teams do worse in derby matches than in other matches; this is something to investigate further.
  2. Team bonding. It’s possible that travelling a longer distance together is a shared experience that can help with team bonding.
  3. Southern economic dominance. England is relatively centralised, economically speaking; most of the wealth is in the south. Teams in the South travel further than average to away games, so perhaps the distance advantage actually shows a southern economic advantage; teams in richer areas can buy better players.
  4. Centralisation vs. sparser regions. England is relatively centralised, geographically speaking; most of the population lives in the bits in the middle, and teams in the Midlands travel the least distance on average. Perhaps teams in more centralised areas (e.g. Walsall, Coventry) have more competition for resources like new talent and crowd attendance, while teams in less centralised areas (e.g Exeter, Newcastle) might have less competition for those resources.

I also used Tableau’s clustering algorithm to separate out teams and their away performances based on distance travelled, and it resulted in four basic away performance phenotypes (which you can explore properly and search for your own team here):

Since I had the stadium details, I had a look at whether the stadium capacity made a difference. This isn’t a sophisticated analysis – better teams tend to be more financially successful and therefore invest in bigger stadiums, so it’s probably just a proxy for how good the home team is overall, rather than capturing how a large home crowd could intimidate an away team.

Finally, this heat map combines the two previous graphs and shows that away teams tend to do better when they travel further to a smaller ground. This potentially shows the centralisation issue discussed earlier; the lack of data in the bottom right corner of the graph shows that there are very few big stadiums in parts of the country like the far North West, North East, and South West, where away teams have to travel a long way to get to.

So, it looks like the further an away team travels, the better they tend to do… although that could reflect more complicated economic and geographic factors.

Standard
R, Uncategorized

Visualising football league tables

I was looking at the Premiership league table today, and it looks like this:

current league table

It’s pretty informative; we can see that Leicester are top, Aston Villa are bottom, and that the rest of the teams are somewhere in between. If we look at the points column on the far right, we can also see how close things are; Villa are stranded at the bottom and definitely going down, Leicester are five points clear, and there’s a close battle for the final Champions League spot between Manchester City, West Ham, and Manchester United, who are only separated by a single point.

Thing is, that requires reading the points column closely. If you take the league table as a simple visual guide, it doesn’t show the distribution of teams throughout the league very well. If you say that Stoke are 8th, that sounds like a solid mid-table season… but what it doesn’t tell you is that Stoke are as close to 4th place and the Champions League as they are to 10th place, which is also solid mid-table. A more visually honest league table would look something a little like this*:

current league table dragged about a bit

*definitely not to scale.

Screen-shotting a webpage and dragging things about in MS Paint isn’t the best way to go about this, so I’ve scraped the data and had a look at plotting it in R instead.

Firstly, let’s plot each team as a coloured dot, equally spaced apart in the way that the league table shows them:

League position right now

(colour-coding here is automatic; I tried giving each point the team home shirt colours, but just ended up with loads of red, blue, and white dots, which was actually a lot worse)

Now, let’s compare that with the distribution of points to show how the league positions are distributed. Here, I’ve jittered them slightly so that teams with equal points (West Ham and Manchester United in 5th and 6th, Everton and Bournemouth in 12th and 13th) don’t overlap:

League points right now

This is far more informative. It shows just how doomed Aston Villa are, and shows that there’s barely any difference between 10th and 15th. It also shows that the fight for survival is between Norwich, Sunderland, and Newcastle, who are all placed closely together.

Since the information is out there, it’d also be interesting to see how this applies to league position over time. Sadly, Premiership matches aren’t all played at 3pm on Saturday anymore, they’re staggered over several days. This means that the league table will change every couple of days, which is far too much to plot over most of a season. So, I wrote a webscraper to get the league tables every Monday between the start of the season and now, which roughly corresponds to a full round of matches.

Let’s start with looking at league position:

League position over time

This looks more like a nightmare tube map than an informative league table, but there are a few things we can pick out. Obviously, there’s how useless Aston Villa have been, rooted to the bottom since the end of October. We can also see the steady rise of Tottenham, in a dashing shade of lavender, working their way up from 8th in the middle of October to 2nd now. Chelsea’s recovery from flirting with relegation in December to being secure in mid-table now is fairly clear, while we can also see how Crystal Palace have done the reverse, plummeting from 5th at the end of the year to 16th now.

An alternative way of visualising how well teams do over time is by plotting their total number of points over time:

League points over time

This is visually more satisfying than looking at league position over time, as we can see how the clusters of teams in similar positions have formed. Aston Villa have been bottom since October, but they were at least relatively close to Sunderland even at the end of December. Since then, though, the gap between bottom and 19th as opened up to nine points. We can also see how Leicester and Arsenal were neck and neck in first and second for most of the season, but the moment when Leicester really roared ahead was in mid-February. Finally, the relegation fight again looks like it’s a competition between Norwich, Sunderland, and Newcastle for 17th; despite Crystal Palace’s slump, the difference between 16th and 17th is one of the biggest differences between consecutive positions in the league. This is because Norwich, Sunderland, and Newcastle haven’t won many points recently, whereas Swansea and Bournemouth, who were 16th and 15th and also close to the relegation zone back in February, have both had winning streaks in the last month.

One of the drawbacks with plotting points over time is that, for most of the early part of the season, teams are so close together that you can’t really see the clusters and trends.

So, we can also calculate a ratio of how many points a team has compared to the top and bottom team at any given week. To do this, I calculated the points difference between top and bottom teams each week, and then calculated every team’s points as a proportion of where they are.

For example, right now, Leicester have 66 points and Aston Villa have 16. That’s a nice round difference of 50 points across the whole league. Let’s express that points difference on a scale of 0 to 1, where Aston Villa are at one extreme end at 0 and Leicester are at the other extreme end at 1.

Tottenham, in 2nd, have 61 points, or five points fewer than Leicester and 45 points more than Aston Villa. This means that, proportionally, they’re 90% along the points difference spectrum. This means they get a relative position of 0.9, as shown below:

Relative league position over time

This is a lot more complicated, and perhaps needlessly so. It reminds me more of stock market data than a football league table. I plotted it this way to be able to show how close or far teams were from each other in the early parts of the season, but even then, the lines are messy and all over the place until about the start of October, when the main trends start to show. One thing that means is that however badly your team are doing in terms of points and position, there’s little use in sacking a manager before about November; there’s not enough data, and teams are too close together, to show whether it’s a minor blip or a terminal decline. Of course, if your team are doing badly in terms of points and position and playing like they’ve never seen a football before, then there’s a definite problem.

To make it really fancy/silly (delete as appropriate), I’ve plotted form guides of relative league position over time. Instead of joining each individual dot each week as above, it smooths over data points to create an average trajectory. At this point, labelling the relative position is meaningless as it isn’t designed to be read off precisely, but instead provides an overall guide to how well teams are doing:

Relative league position over time smooth narrative (span 0.5)

Here, the narratives of each team’s season are more obvious. Aston Villa started out okay, but sank like a stone after a couple of months. Sunderland were fairly awful for a fairly long time, but the upswing started with Sam Allardyce’s appointment in October and they’ve done well to haul themselves up and into contention for 17th. Arsenal had a poor start to the season, then shot up, rapidly to first near the end of the year, but then they did an Arsenal and got progressively worse from about January onwards. Still, their nosedive isn’t as bad as Manchester City’s; after being top for the first couple of months, they’ve drifted further and further down. It’s more pronounced since Pep Guardiola was announced as their next manager in February, but they were quietly in decline for a while before that anyway. Finally, looking at Chelsea’s narrative line is interesting. While they’ve improved since Guus Hiddink took over, their league position improvement is far more to do with other teams declining over the last couple of months. Four teams (Crystal Palace, Everton, Watford, and West Brom) have crossed Chelsea’s narrative line since February.

I don’t expect these graphs to catch on instead of league tables, but I definitely find them useful for visualising how well teams are doing in comparison to each other, rather than just looking at their position.
